Description

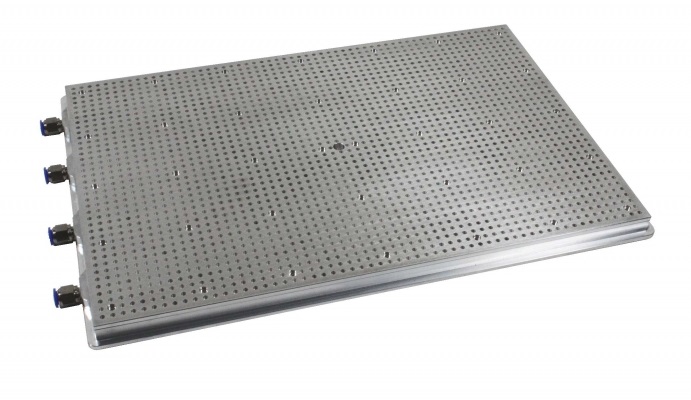

Vacuum Tables of this type are available in almost any size. This size vacuum clamping plate is one of the most common sizes sold. It is small enough to take on and off your work table while still being able to machine large parts. The table can be faced to match your CNC so the flatness is as accurate as your CNC machine. This type clamping plate includes a mat that is used to help hold a vacuum suction as well as giving a small distance between the table top and your material. The mats are reusable but over time may see enough wear where they need replacement. We have additional mat material that can be purchased on the website and is sold by the linear foot. Also used with this type vacuum table is a thin solid rubber mat to cover area not used which is also available for purchase by the linear foot on our website. We have suggestion of the size pump at the bottom of the listings. Other accessories are also available.
24.12 x 16.25 inch base overall dimensions
23.62 x 15.75 inch vacuum area dimensions (600 x 400 mm)
Four Port Table and Manifold, 10mm hole grid w/ 5mm holes
¼ in x ¼ in mounting lip at bottom perimeter
Includes: Fleece Vacuum Mat, Solid Rubber Mat, Manifold, Fittings & Hose
